Compare the AlphaHounds
Decide which model is right for you.
AB Lite
αβ
Detects
Primary: Alpha & Beta
Secondary: Gamma*
Basic alpha-beta separation
Separation
AB+
Primary: Alpha & Beta
Secondary: Gamma*
αβ
Advanced alpha-beta separation
AB+G
αβγ
Primary: Alpha, Beta & Gamma
Advanced separation between alpha, beta, and gamma
Sensitivity
Relative Sensitivity (%)
Modes
AB Lite: 5
-
Displays the counts using a scaling rolling graph.
-
Displays the numerical count-rate taken over a longer averaging period.
-

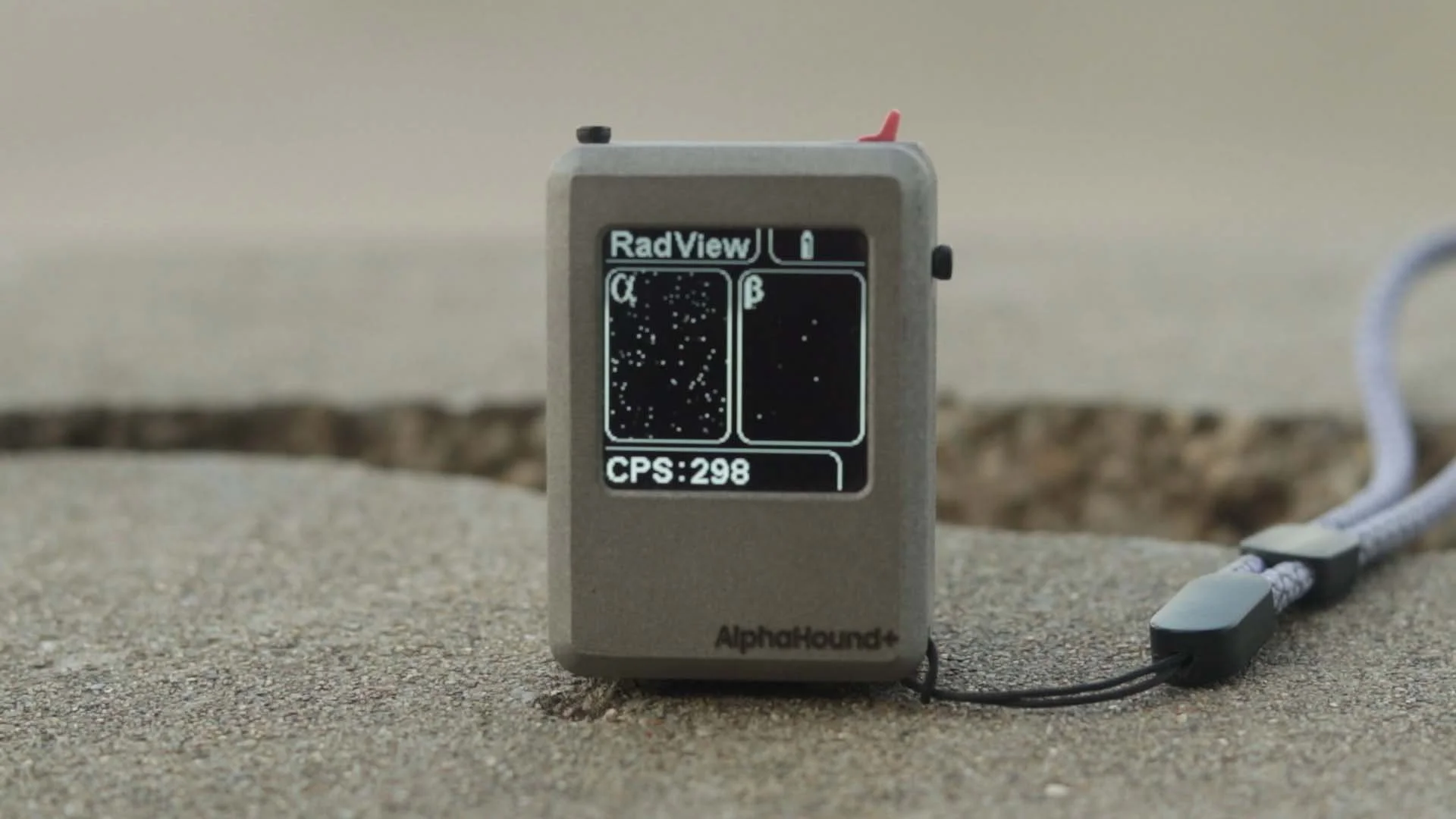

Displays alpha counts on the left and beta counts on the right in the form of a randomly placed sparkle-per-count.
-
This mode saves battery by only featuring an "LP" in the corner and a random sparkle corresponding to a count.
-
Retro-visualization in the form of a classic analog gauge.
AB+: 8
-
Displays the counts using a scaling rolling graph.
-
Displays the numerical count-rate taken over a longer averaging period.
-
Displays alpha counts on the left and beta counts on the right in the form of a randomly placed sparkle-per-count.
-
This mode saves battery by only featuring an "LP" in the corner and a random sparkle corresponding to a count.
-
Basic spectroscopy for alpha & beta in a 2 dimensional axis.
-
Basic alpha & beta spectroscopy in a 3 dimensional axis.
-
Creates a graph over two hours for the approximate level of radon detected in the industry standard units of pico-Curie per liter of air or Becquerels per meter cubed (Bq/m^3) depending on the unit selected in the settings menu
-
Retro-visualization in the form of a classic analog gauge.
AB+G: 11
-
Displays the counts using a scaling rolling graph.
-
Displays the numerical count-rate taken over a longer averaging period.
-
Displays alpha counts on the left, beta counts in the middle, and gamma counts on the right in the form of a randomly placed sparkle-per-count.
-
This mode saves battery by only featuring an "LP" in the corner and a random sparkle corresponding to a count.
-
Basic spectroscopy for alpha & beta in a 2 dimensional axis.
-
Basic alpha & beta spectroscopy in a 3 dimensional axis.
-
Creates a graph over two hours for the approximate level of radon detected in the industry standard units of pico-Curie per liter of air or Becquerels per meter cubed (Bq/m^3) depending on the unit selected in the settings menu
-
Retro-visualization in the form of a classic analog gauge.
-
Standard gamma spectroscopy with a resolution of <10%.
-
Time-based historic gamma spectrum chart.
-
Uses the lowest possible power to conserve battery life and only displays gamma/x-ray dose. Can last approximately twelve hours before needing charge.
Technical Specifications
AB Lite
One Silicon Photomultiplier (SiPM)
Beta Scintillation: EJ-444 or Equivalent
Alpha Scintillation: ZnS(Ag)
Acetyl Chassis
Measuring Units:
CPM/CPS
User choice button: black, red, green, or blue
AB+
Two Silicon Photomultipliers (SiPM)
Beta Scintillation: EJ-444 or Equivalent
Alpha Scintillation: ZnS(Ag)
Metal Chassis
Measuring Units:
CPM/CPS
Black button
Three Silicon Photomultipliers (SiPM)
AB+G
Beta Scintillation: EJ-444 or Equivalent
Alpha Scintillation: ZnS(Ag)
Gamma Scintillation:
CsI(TI)**
Metal Chassis
Measuring Units:
CPM/CPS
Rem/Sv
Black button
Specs that are equivalent between all three detectors
User Repair-ability
All parts can be drop-in replaced by user, including screen, aluminized Mylar cards, and scintillation material upon damage.
Battery Type
Lithium, Rechargeable 350mAh
Battery length on full charge
3-20hrs, depending on display mode
Time to full charge
1.5hr
Display Type
Digital 128X128 OLED
Software:
User-updatable over USB C port with windows PC through “AlphaHoundUpdater” Software
Ships with:
AlphaHound
Boot dust cover
User-choice color wrist strap
USB type C to A charging cable
User manual
Compliance
FCC, ISED, CE, UKCA, C-Tick
Country of Origin
USA
*The material used to detect beta particles inherently captures the occasional gamma hit. The material is thin to primarily stop betas, but statistically gamma radiation can be stopped as well, it is just significantly less likely. This is true of all beta scintillation material, and also in the inverse with gamma-sensitive material if it is not properly beta-blocked. The AB Lite and AB+ will experience the occasional gamma that reads to our software as beta. The AB+G utilizes the separate and properly blocked gamma crystal to separate out beta from gamma, hence the complete separation.
**We originally used BGO as the scintillation crystal in the AB+G, but that was before sanctions restricted the flow of this material into the US. As of Dec 2025, we have not had an encouraging resolution to this supply issue, so we are moving forward with a larger CsI(TI) crystal to provide both better sensitivity and resolution. If you have any questions don’t hesitate to reach out!
