Know what you are detecting.
Alpha, beta, and gamma
Three scintillation materials, three Sipms, complete separation.
Sensitive
1.72 in² open detection area for alpha/beta, 14x18x4.5mm CsI(TI) scintillator for gamma.
Repairable
Designed to allow the user to fix the device using drop-in replacement parts.
Spectroscopic
CsI(TI) with a <10% resolution. Spectrum viewing on device, or downloaded to your PC.
How does AB+G stack up?
Compare the AB+G to the AB+ and the AB Lite to determine which AlphaHound is right for you.
AB+G Specs
-
Detects alpha, beta, and gamma radiation with complete separation between the three types.
-
Alpha - ZnS(Ag)
Beta - EJ444 or Equivalent
Gamma - CsI(TI) 1.1 cm³
-
Spectral dose rate compensation
-
48 cps per μSv/h (0.48 per μrem/h)
-
<10%
-
Pu239 : 18%
Cl36 : 19%
Tc99 : 3%
-
Alpha to Beta: < 5%
Beta to Alpha: < 0.001% @ < 20,000 CPS(1.2MCPM)
Gamma to Beta - User Adjustable
-
Tri-tone clicks to indicate radiation type
Scaling tone at high count rates
-
0 to 6,000,000 CPM | >12.0MCPM Over Range (Beta)
0 to 1.2 MCPM | >3 MCPM Over Range (Alpha)
0 to TBD MCPM | >TBD MCPM Over Range (Gamma(AB+G))
0 to 20,000 CPS | >50,000 CPS Over Range (Alpha)
0 to 100,000 CPS | >200,000 CPS Over Range (Beta)
-20°C to 55°C (-4°F to 131°F)
-
CPM
CPS
Rem/Sv(AB+G)
-
<50 KeV @ 25°C
-
Mode 1 : Rolling Graph
Mode 2 : Low Power Sparkles
Mode 3 : Average Counts

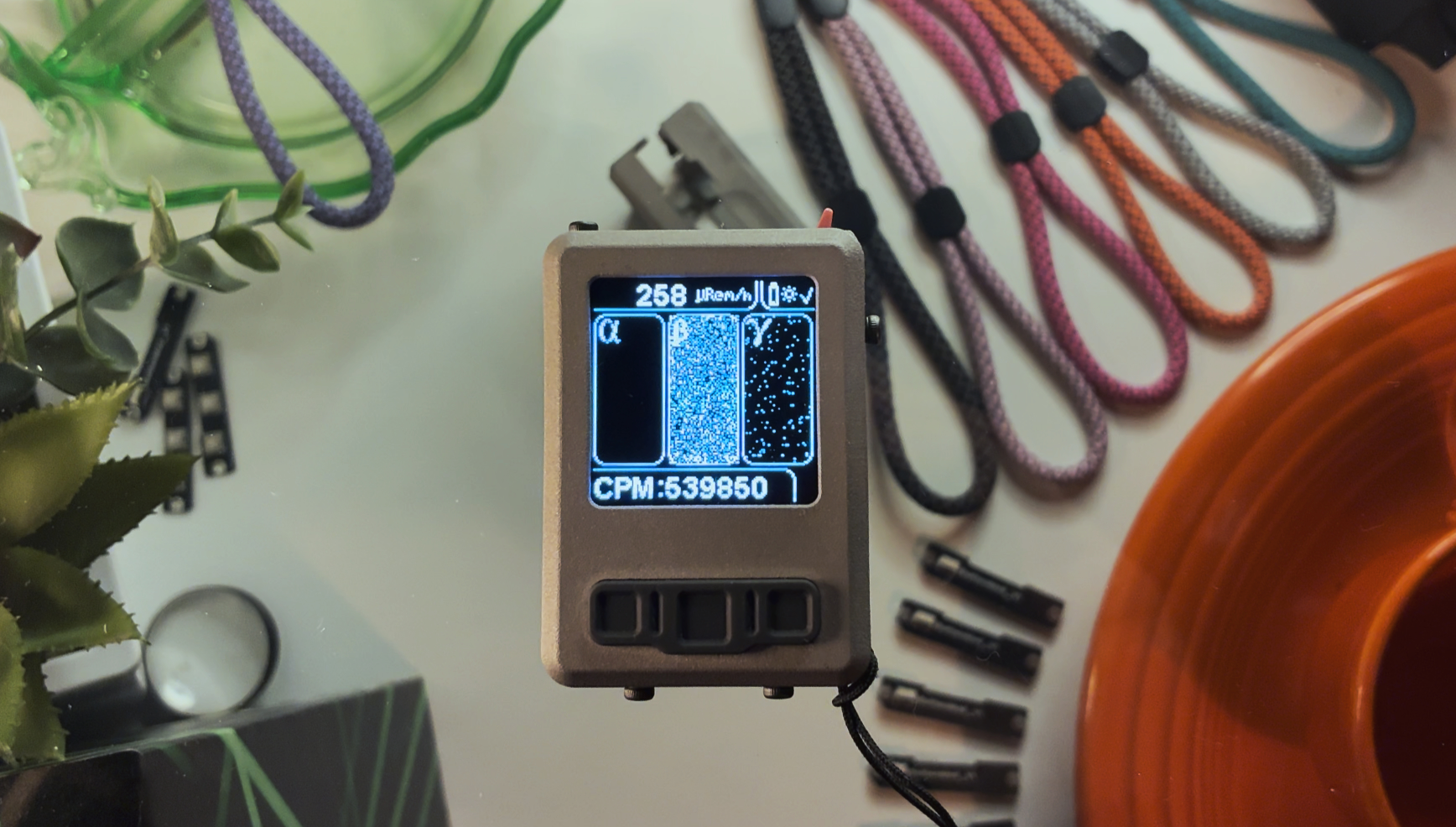

Mode 4 : ABY Split Sparkles
Mode 5 : Basic AB 2D spectroscopy
Mode 6: Basic AB 3D spectroscopy
Mode 7 : Radon Approximation
Mode 9 : Gamma Spectroscopy
Mode 10 : Spectrogram
Mode 11 : Analog Gauge
Mode 12: Power Saver Mode
-
Lithium, Rechargeable 350mAh
-
3-20hrs (Depending on display mode)
-
1.5hr
-
Digital 128X128 OLED
-
User-updatable over USB C port with windows PC through AlphaHoundUpdater Software
-
Metal Chassis
Removable SLS Nylon Dust Cover
-
AlphaHound
Boot Dust Cover/Alpha Shield
Wrist Strap
USB Type A to C Charging Cable
User Manual
Helpful Links
Extras
Replacements, goodies, and gadgets to boost your detection toolkit.
Basic components needed to repair the most common fix the AlphaHound may need. Due to the nature of the aluminized mylar, it may perforate or tear causing a light leak. This kit includes:
3 Mylar Cards (two for use and an extra for backup)
1 New Gasket (to replace the previous compressed gasket)
1 Hex Key to remove the screws
Detect from a distance! This specialized boot allows you to attach your AlphaHound to any standard sized extension pole while keeping the back open for alpha/beta detection. Fits every model of AlphaHound. Telescoping pole optional add-on.
Compatible with all models of AlphaHound. Specialized boot designed to test samples at a known distance from the AlphaHound! Get reliable and consistent sampling with this handy little adaptation. Comes with one main sample tray and two extras.
